AH-2kW Pitch controlled wind turbine-Qingdao Anhua New Energy Equipment Co., Ltd.

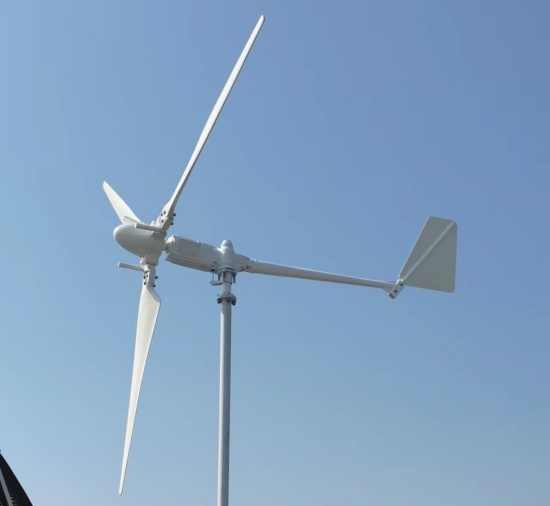

AH-2kW Pitch controlled wind turbine

High safety and continuous operation all the time.

1. The rotate speed is regulated by pitch controlled mechanism all the time,the turbine can operate steadily even in worse wind condition.

High efficiency,high output

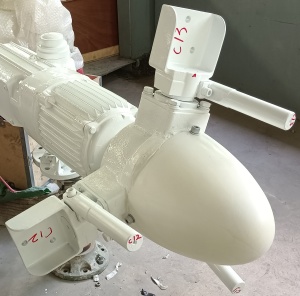

1. The pitch controlled mechanism can track the wind rotor speed to regulate the blade pitch angle and obtain maximum wind energy utilization coefficient.

Specifications
Solution Plan
Application field
Case photos

Specifications

Basic information

Rated power：2 kW	Model：AH-2kW

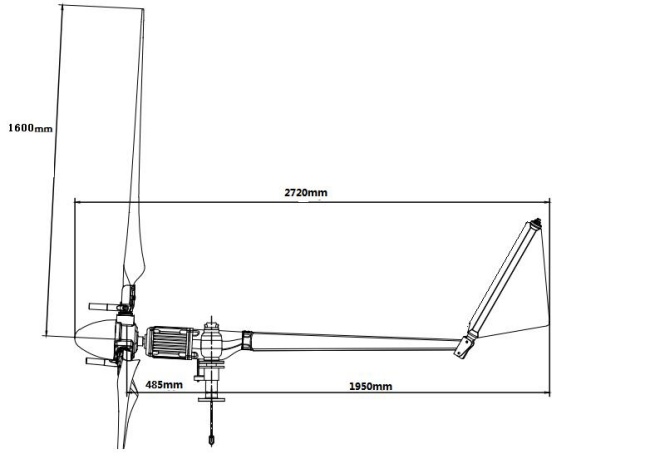

Rotor diameter：3.5 m	Blade: 3*Reinforced FRP
Start-up wind speed：2.5 m/s	Rated voltage: DC120/96/48 V
Rated wind speed：11 m/s	Over wind speed protection: Pitch controlled+Yawing stall
Working wind speed：3-25 m/s	Tower type：Tilt-up/Independent/Hydraulic
Extreme wind speed：50m/s	Speed regulation : Mechanical centrifugal pitch controlled
Rated rotor speed：400 rpm	Wind direction finding method: Yawing
Total weight: 125 kg	Working temperature：-25 ℃~50 ℃
Design grade：IEC II	Tower height：≥7 m
Noise level：≤60 dB	Design life：20 years

Certifications and report	CE Intertek
Annual power	Annual average wind speed 4m/s：1720kWh Annual average wind speed 5m/s：3525kWh Annual average wind speed 6m/s：5210kWh Annual average wind speed 7m/s：7196kWh
Safety protection	Rpm regulation : Mechanical centrifugal pitch controlled Lightning protection measures: lightning protection module + lightning protection grounding. Over wind speed protection：Pitch controlled+Yawing stall Surface anticorrosion: hot galvanizing + special anticorrosive paint.
Generator	Type：Direct drive 3 phase AC PMG Protection class：IP54 Insulation class：F

Solution Plan

Wind solar and BESS mircogrid power supply system

Wind, Solar and Diesel Hybrid Off Grid

Decentralized Wind Power On Grid

Application field

Micro grid power station. on-grid system; wind and solar hybrid system; GSM base station, frontier sentry, island and sight lighting system and so on.

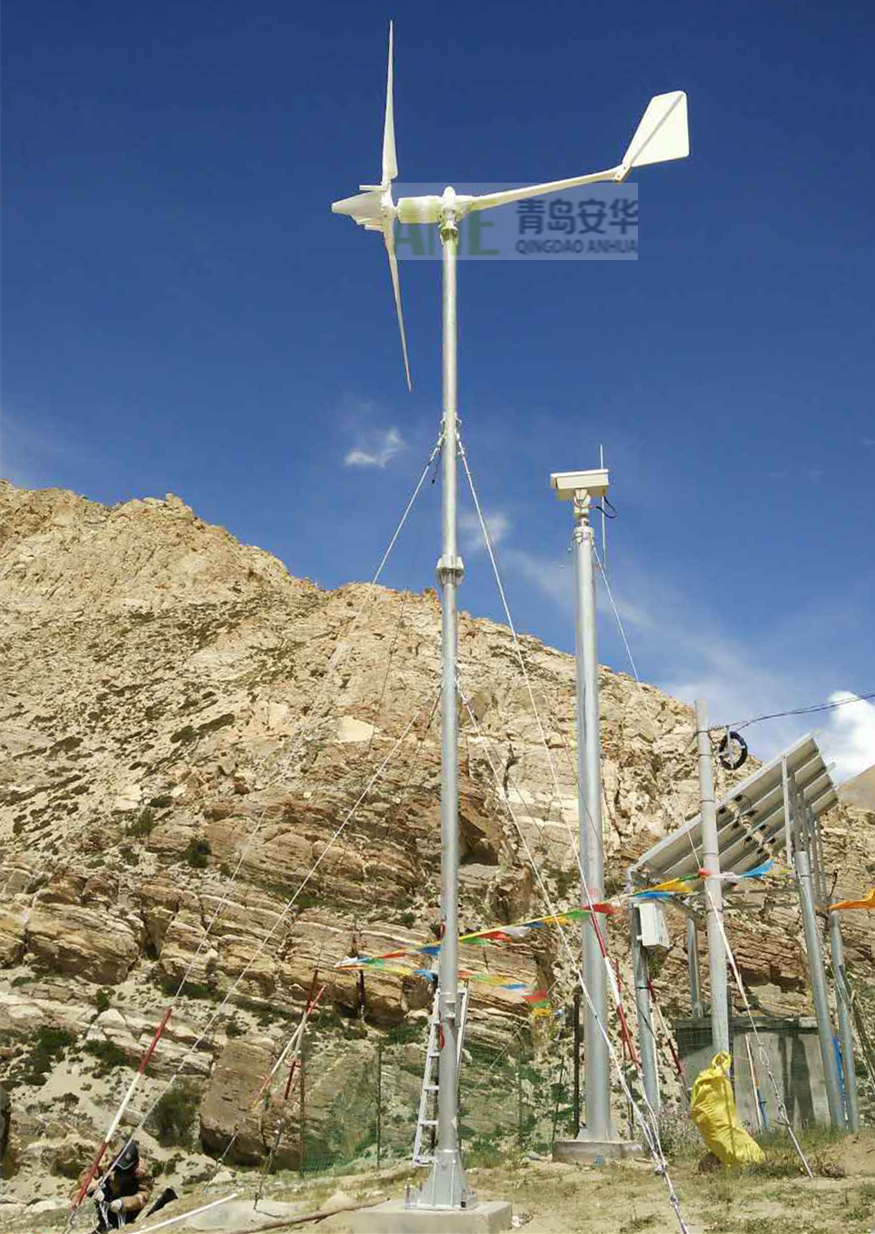

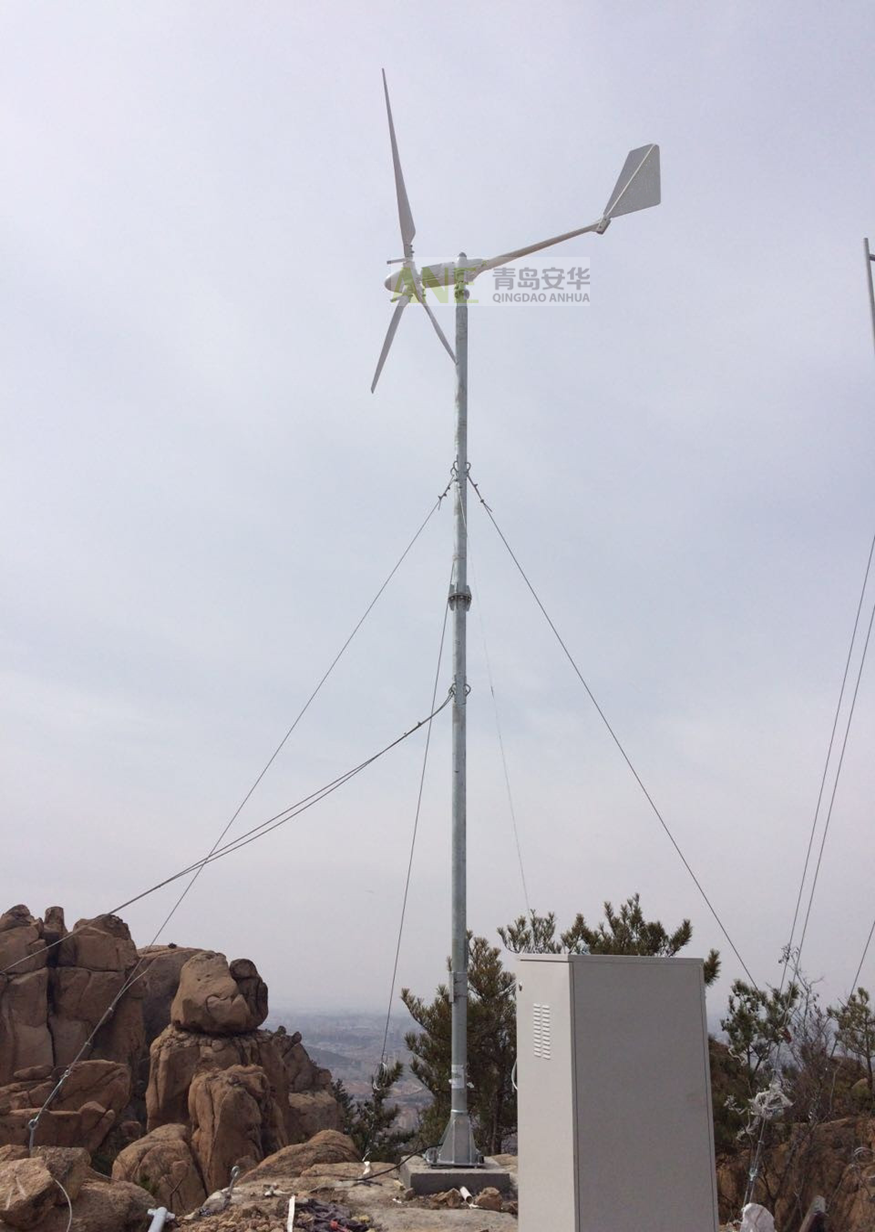

Case photos

Click to see more cases
