★With the Godkendelse certification from wind power kingdom Denmark and classNK certification from Japan, make sure a good use.
★High safety——unattended continuous operation all the time
1. The rotate speed is regulated by pitch controlled mechanism all the time,the turbine can operate steadily even in worse wind condition.
2. ASP system (Automatic safety protection system) ensure a double protection, the system is more safety.
★Generate more power——Pitch controlled regulation,high efficiency, more than 30% output30%
1. Above rated wind speed, blade pitch angle will be passive regulated to keep full-power output.
2. Large working wind speed range（3-25m/s）.
★Low maintenance cost——3
1. The key components is designed thinking of free maintenance,no need maintenance in 3 years.
2. Tilt-up tower can ensure easy installation and maintenance。
Basic information

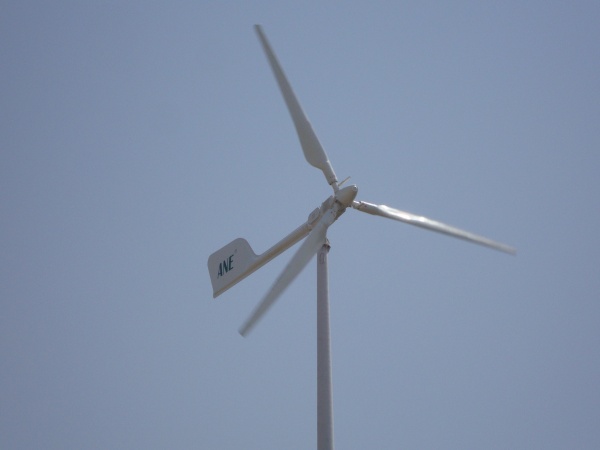

| Rated power：10kW | Model：AH-10kW pitch controlled wind turbine |
| Rotor diameter：7.8m | Blade:3*Reinforced FRP |
| Start-up wind speed：2.5m/s | Rated voltage：DC400V/280V/240V |
| Rated wind speed：11m/s | Over wind speed protection:Pitch controlled+ASP |
| Working wind speed：3-25m/s | Tower type：Tilt-up/Independent/Hydraulic |
| Survive wind speed：60m/s | Rpm regulation : Mechanical centrifugal pitch controlled |
| Rated rpm：180rpm | Wind direction finding method:Yawing |
| Total weight：600kg | Working temperature：-25℃~50℃ |
| Design grade：IEC II | Tower height：≥12m |
| Noise level：≤60dB | Design life：20years |
| Certifications and report | CE Intertek ClassNK Godkendelse |
| Annual power | Annual average wind speed 4.5m/s：13800kWh Annual average wind speed 5m/s：17500kWh Annual average wind speed 5.5m/s：22000kWh Annual average wind speed 6m/s：26000kWh |
| Safety protection | Rpm regulation : Mechanical centrifugal pitch controlled Lightning protection measures: lightning protection module + lightning protection grounding. Over wind speed protection：Pitch controlled+ASP Surface anticorrosion: hot galvanizing + special anticorrosive paint. |
| Generator | Type：Direct drive 3 phase AC PMG Protection class：IP54 Insulation class：F |
Multi Energy Complementary Micro Grid
Wind, Solar and Diesel Hybrid Off Grid
Decentralized Wind Power On Grid
Micro grid power station. on-grid system; wind and solar hybrid system; GSM base station, frontier sentry, island and sight lighting system and so on.
